SAM4S SPS-345 Raised-Keyboard Dual-Printer Cash Register
About the SPS-345
What it is and who it fits
The SPS-345 is the SPS-300 Series raised-key model, which CRS positions for retail. Its 21 keyboard PLU keys work like traditional departments or preset-price keys, a SAM4s dealer can expand them to 63, and it prints both a customer receipt and a journal.
A closer look
Detail photos supplied by CRS, the authorized SAM4S distributor.
Best fit
- Retail: gift shops, convenience stores, beer, wine and liquor, specialty food, produce, meat and main-street merchants (CRS application list)
- Counters that ring by department or preset-price key, with large, easy-to-read keys
- Stores that scan: build the PLU file as you go with not-found PLU registration
- Businesses that want a printed journal as well as the receipt, or several networked registers
Key features
- Receipt and journal printers. Two 22-line-per-second thermal printers with drop-and-print loading, and a condensed journal feature.
- Expandable keyboard. 21 double-width PLU keys as delivered; a SAM4s dealer can set the keyboard up for 63 PLU keys.
- Eight-line operator display. 8 lines x 32 characters, backlit, with a red, green or blue background. Each item is named as it is entered, and reports and program options are viewed and selected on screen.
- Multi-register network (IRC). Link up to 8 SPS-300 registers for consolidated reports, program downloads and a shared kitchen printer. What the network does and does not do
- Scanning. A bar code scanner connects to an RS-232C port; not-found PLU registration builds the item file as you scan, and up to 15 PLU look-up keys each show up to 8 items.
- Card payments. The Ethernet port connects a Datacap DC Direct device (firmware v2.000 and later) or a Dejavoo terminal (v2.0.15 and later), with an SD card kept installed for EMV. A register with either enabled runs standalone, off the network; the Datacap DataTran appliance connects by RS-232C instead and can be shared across it.
- SD card port. Save and load the program, capture reports, update firmware and upload receipt graphics; the port sits under the printer cover.
- Everyday capacity. Up to 200 guest checks, 5 price levels per PLU, 4 tax rates or tables and sales-by-day reports for 31 days.
- Languages. English, Spanish or French.
Configuration
What this machine is.
- Model number
- SPS-345
- Series
- SPS-300 Series
- Keyboard
- Raised-key
- Built-in printing
- Dual station (receipt + journal)
- Printer technology
- Thermal
- Paper width
- 58 mm (2.25 in)
- Drive voltage
- 24V
- Electronic journal
- Supported
- Lifecycle
- Current
- Verified interfaces
- 2 × RS-232C serial, D-Sub-9M (COM1 & COM2, standard)2 × RS-232C serial, RJ45 (COM3 & COM4, optional 2-port board, CRS item 501531)Ethernet for inter-register communications (IRC) between SPS-300 registersAdditional RJ11 (24V) port for a second cash drawer
The second station is an internal journal, not a kitchen printer. It prints a continuous paper record that stays inside the register for the owner's own reference, alongside the customer receipt. An external kitchen or remote impact printer is a completely separate peripheral that sits away from the register and has to be specified, connected and programmed on its own.
Electronic journal. This register can keep journal records electronically inside the machine rather than only on paper. That is an electronic recordkeeping capability, not an extra print station: it does not add a second built-in printer, and it is not an external kitchen or remote impact printer.
Current model identity, raised-key configuration, dual 58 mm thermal receipt-and-journal printers, electronic journal and Ethernet capability verified against the current CRS listing and SAM4S ECR Quick Reference Guide.
About the SPS-300 Series
Advanced commercial electronic cash registers with multi-line operator displays, flat or raised keyboards, and single- or dual-station printer configurations.
Typical use: Detailed retail, liquor, convenience, specialty retail, restaurants, bars, bakeries, concessions, and counter service.
Specifications
Printing
| Print technology | Direct thermal, drop-and-print |
|---|---|
| Print stations | Dual station: customer receipt and printed journal |
| Print speed | 22 lines per second |
| Receipt paper width | 58 mm (2-1/4 in) |
| Electronic journal | Up to 50,000 lines; can be saved to SD cardAdvertised |
| Condensed journal | Available on the journal printer |
Keyboard
| Keyboard style | Raised-key, large keys |
|---|---|
| Keyboard PLU keys | 21 (act as departments or preset-price keys) |
| Keyboard PLU keys, expanded | 63, set up by a SAM4s dealerOptional |
| Keys | Up to 94 keys / 78 programmable locationsAdvertised |
| PLU look-up keys | Up to 15, each showing up to 8 items on the displayAdvertised |
Capacity
| PLUs (items) | Over 19,000 availableAdvertised |
|---|---|
| PLUs (items) | Up to 20,000, only if other memory areas are set near zeroTheoretical maximum |
| Default memory allocation | 2,000 PLUs, 10 clerks, 20 group totals, 1,000 journal lines, 10 guest checks; reallocated in programming |
| Clerks / cashiers | Up to 99Advertised |
| Group totals | Up to 99Advertised |
| Guest checks | Up to 200, hard or soft; kept per registerAdvertised |
| Price levels | Up to 5 per PLUAdvertised |
| Tax | Up to 4 rates or tables |
| Languages | English, Spanish or French |
Connectivity

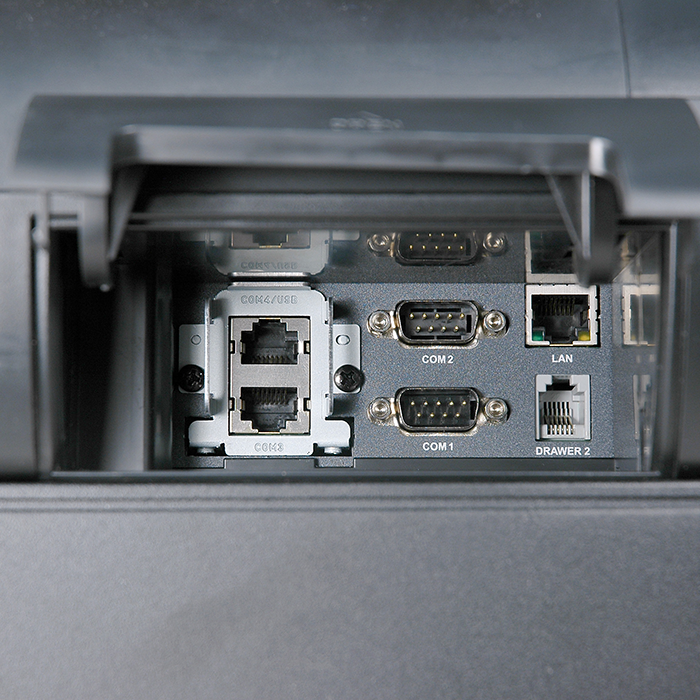

| Serial ports | 2 x RS-232C, COM1 and COM2 (D-Sub-9M) |
|---|---|
| Additional serial ports | 2 x RS-232C, COM3 and COM4 (RJ45), with the 2-port option board (CRS item 501531)Optional |
| Ethernet (LAN) | 1 port: networks up to 8 SPS-300 registers (IRC), or connects a DC Direct or Dejavoo payment device (not both) |
| Second cash drawer port | 1 x RJ11 (24 V), supports open/close |
| SD card port | Standard, under the printer cover |
| Card reader | Integrated dual-track magnetic card reader, optionalOptional |
Power
| Power | 120 VAC ±10%, 50/60 Hz |
|---|---|
| Power consumption | About 25 W |
| Memory protection | A 24-hour full charge protects memory for 90 days |
Physical

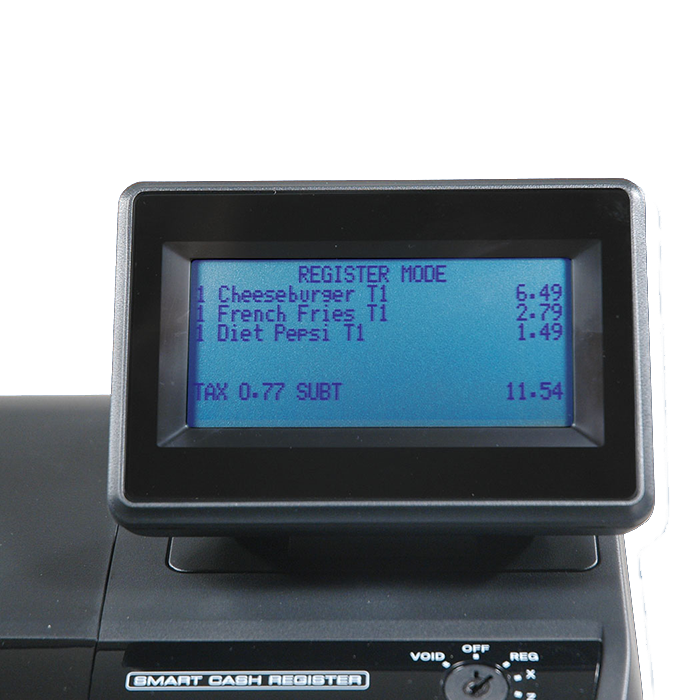

| Operator display | 8 lines x 32 characters, backlit LCD, red, green or blue background |
|---|---|

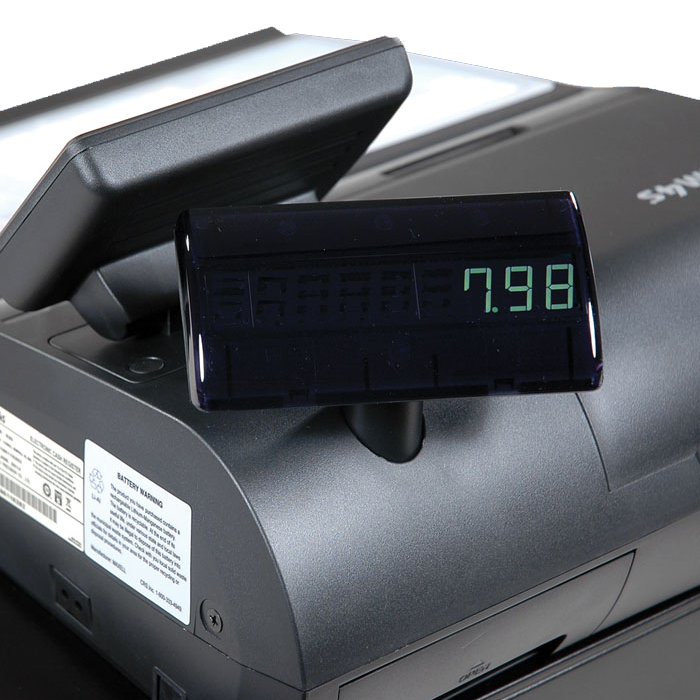

| Customer display | Rear 9-digit LED |
| Cash drawer | 5-bill / 5-coin insert, drawer lock, two media slots |
| Unit dimensions / weight | 16-1/2 x 15-3/4 x 11-13/16 in (W x D x H), 25.10 lb |
| Shipping carton | 22 x 20 x 15 in (L x W x H), 30.8 lb |
| Operating environment | 32-104 °F (0-40 °C), 30-80% RH non-condensing |
Specified in: SPS-300 Series BrochureSPS-300 Operators-Programming Manual
More than one register?
Network up to 8 SPS-300 registers (IRC)
Every SPS-300 has an Ethernet port for inter-register communications (IRC). Two registers connect directly with a crossover cable; three to eight connect to an Ethernet switch. Any SPS-300 model, including this SPS-345, can join the network.
What the network does
- One set of reports. Take consolidated X (read) or Z (reset) reports for all the registers, or chosen ones, from any register.
- Program once, send to all. New items and price changes made on one register are sent to all or selected registers with Program Down. They are not sent automatically: you choose when to send them.
- Shared kitchen printer and payment appliance. A kitchen printer and a Datacap DataTran appliance plugged into one register can be used by the others; that register shows WORKING for a moment while it passes the job on. The manual recommends connecting both to the same register.
- PC reporting. A PC connected to one register can collect reports from, and load programs to, the others with the optional SAM300 or PC-Poll software.
What stays on each register
- Scales, scanners, pole displays and coin dispensers work only with the register they are plugged into.
- Guest checks stay on the register where they were opened; each register's check file can still be polled.
- A register in the middle of a sale or switched off cannot answer and shows IRC NOT READY. The manual recommends leaving the power switch on and turning the register off with the mode key.
- Integrated card payments over Ethernet. With Datacap DC Direct or Dejavoo enabled, that register runs standalone: no program downloads, shared reports or printer sharing. A payment setup for a networked store has to be planned with this in mind.
Planning the network
- Cable: shielded Cat 5e (STP) at minimum, Cat 6 also acceptable, with no run longer than 328 ft (100 m) between a register and the switch.
- Each register gets its own number (1 to 8) and the network range in its IRC options; the register holding a shared printer or DataTran is named there too.
- After adding a register to an existing network, power every register off and on so the new one is recognized.
Quote a multi-register system Ask how many registers you need
Source: SAM4s SPS-300 Operators-Programming Manual v1.76, pages 27, 116, 145–146 and 279–283, and the SPS-300 Series Brochure (CRS LIT-411). It is not a cloud service: the documents describe the registers communicating over your store's own network cabling.
Complete Your Register Setup
Everything this register comes with, and the few things worth adding. Options are off unless you turn them on.
Already purchased this register?
Start the setup for SAM4S SPS-345 Raised-Keyboard Dual-Printer Cash Register.
Send us the business, programming, peripheral, payment-terminal and go-live details we need to prepare the register correctly. The worksheet will already know the exact model.
Accessories, supplies and support
These are the items we associate with this register in our own data. Add what you need now, or keep the register by itself.
Hardware compatibility
Documentation supports this pairingVerification required
Documented in:SPS-300 Operators-Programming ManualSPS-300 Series Help
Verification is still required for the exact interface, connector or cable, available power, firmware and programming before this hardware should be ordered for the register.A connector that physically fits does not by itself establish compatibility. Interface, cable, protocol, firmware and programming can all matter, so anything not marked as established should be confirmed with us before you order. Ask us to confirm a pairing.
Code CR5215 Barcode Scanner – Serial with Power Supply
$395.00
Documentation supports this pairing — verification required
Check compatibilityProgramming & support
Support and programming are sold as time blocks at $100 per hour, or $50 for a 30-minute block, Monday–Friday, 9:00 AM–5:00 PM Eastern. There is no 24/7 line. You do not need to have bought the register from us.
Supplies
This model uses 58 mm (2.25 in) receipt paper. Check the roll diameter your printer accepts as well as the width, since width alone does not guarantee fit.
Taking card payments too? Processing is a separate decision from the register, and you can buy any register, package, support or programming here without changing processors. If you want a second opinion on your current statement, equipment and pricing, we can review it.
Request a statement review
Verified accessories
Accessories documented for this register
These are exact products, matched to this exact register. Anything not listed here is not ruled out — it simply has not been verified yet, and we would rather tell you that than sell you a guess.
TS100
Unitech TS100 1D/2D Barcode Scanner – USB or Serial/RS232 for Cash Registers
USB
Owner confirmed for raised-keyboard SAM4s registers. The serial configuration, with the cable and power needed to run it included.
$173.75
View & buy
CR950
Code CR950 1D/2D Barcode Scanner – Serial with Power Supply
RS232
SAM4s setup procedure documented
$175.00
View & buy
CR5215
Code CR5215 Barcode Scanner – Serial with Power Supply
RS232
SAM4s setup procedure documented
$395.00
View & buyDocumented does not mean plug-and-play: port programming, baud settings and the correct cable still have to be right, and that is what we confirm with you before anything ships.
Before you add accessories
Compatibility depends on the exact register model, interface, cable, firmware and programming. We verify the correct configuration before recommending an accessory.
Have us check it →
Compatibility
What we have verified so far.
Barcode Scanners
Documented in:SPS-300 Operators-Programming ManualSPS-300 Series Help
What still has to be confirmed for your counter:
- The manufacturer documents this at the series family level, not as a guaranteed match for one exact configuration.
- The exact port and connector on your equipment has to be confirmed.
- The exact cable has to be confirmed.
- Port programming and device settings have to be confirmed.
- The intended workflow has to be confirmed before anything is ordered.
Compatibility status: Verification required. We confirm the exact configuration before recommending or shipping equipment.
Tax, departments, items, prices, clerks, keyboard layout and receipt details are set up with your register. Custom work beyond the standard setup is quoted separately.
See programming scope →Technical support is a separate service from programming. Support hours are Monday–Friday, 9:00 AM–5:00 PM Eastern; we do not offer 24/7 support. The current support rate is $100/hour.
Support & service hub →Replacement & upgrade
Coming from an older register?
Older SPS-300 Series→SPS-320, SPS-340 or SPS-345
The current SPS-300 direction preserves programmable-key operation; choose flat versus raised keyboard and single versus dual printer from the actual workflow.
Confirm the exact old model, keyboard style, programming, scanners, scales, printers, cash drawer, payment equipment, reports and data-transfer expectations before ordering. Do not assume existing programming or peripherals transfer directly.
Replacement guidance is advisory, not a confirmed one-to-one mapping.
Before ordering a replacement we confirm:
Exact old modelKeyboard styleProgrammingScannersScalesPrintersCash drawerPayment equipmentReportingData-transfer expectations
Existing programming and peripherals do not automatically transfer to a new register. Send us the exact old model and we will check it against your workflow before anything is ordered.
Documentation
Manuals and guides for this model.
Related models

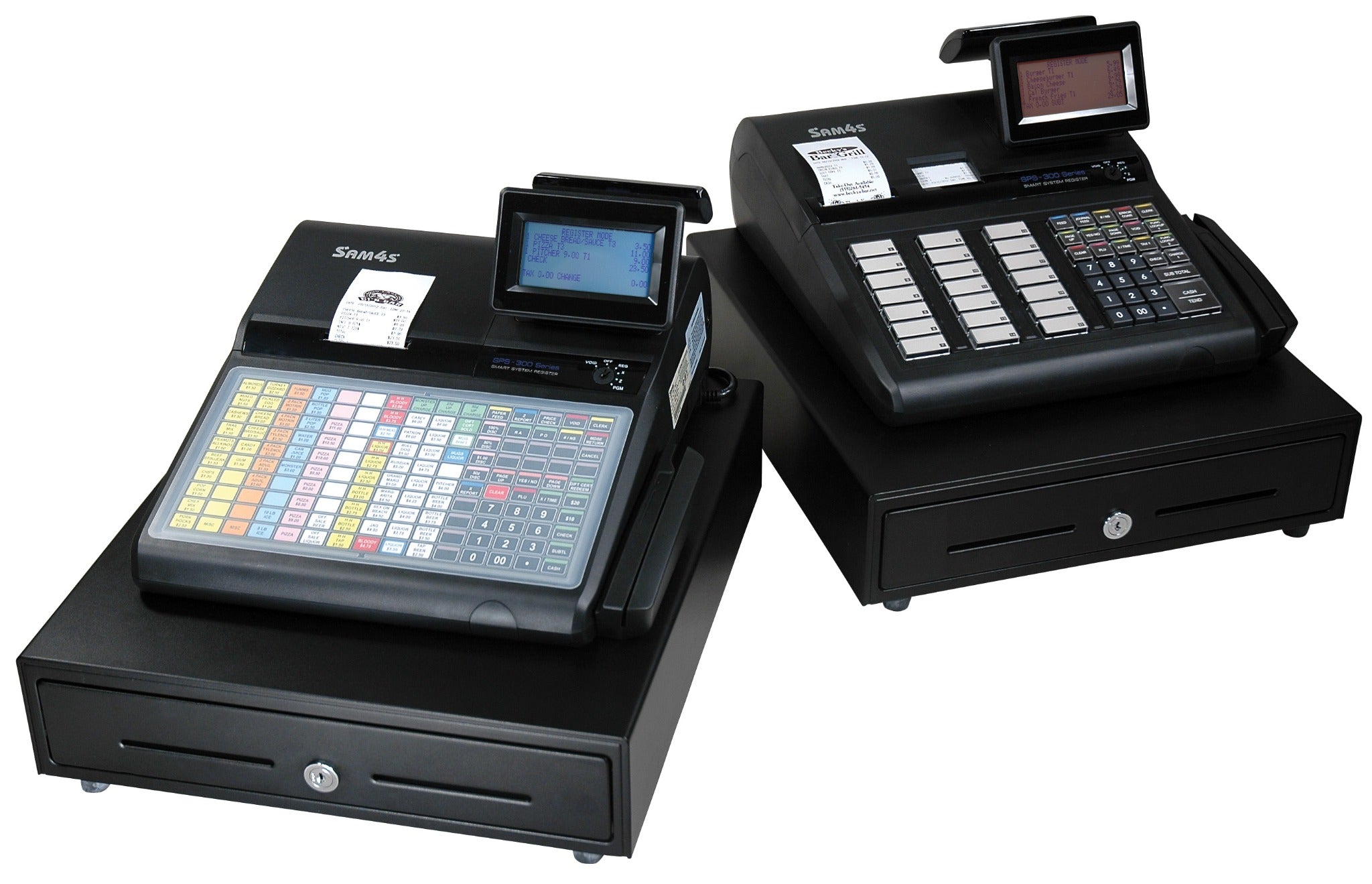

Compare the SPS-300 models
All three share the SPS-300 memory, eight-line display, ports and multi-register network. They differ in keyboard and built-in printing. Prices are current.
 SPS-320
|
 SPS-340
|
 SPS-345
This model | |
|---|---|---|---|
| Current price | $879.00View SPS-320 | $915.00View SPS-340 | $929.00 |
| Best for | Food service, receipt only | Food service with a printed journal | Retail |
| Keyboard | Flat, spill-resistant | Flat, spill-resistant | Raised keys |
| Keys and departments | 150 keys / 100 programmable locations | 150 keys / 100 programmable locations | Up to 94 keys / 78 programmable locations |
| Item (PLU) capacity | Over 19,000 PLUs | ||
| Built-in printing | 1 receipt printer; electronic journal | Receipt and journal printers | Receipt and journal printers |
| Displays | 8-line x 32-character LCD; rear 9-digit LED | ||
| Barcode scanning | RS-232C scanner; not-found PLU registration | ||
| Ports | 2 serial (4 with option board), LAN, second drawer, SD | ||
| Multi-register | Up to 8 SPS-300 registers (IRC) | ||
| What sets it apart | The single-printer flat model | Adds a journal printer to the SPS-320 | Raised keyboard, with the SPS-340's two printers |
Figures from the SPS-300 Series Brochure (CRS LIT-411) and the SPS-300 Operators-Programming Manual v1.76; each model page lists its full sourced specifications. Also compare the ER-900E models.
