SAM4S Model 60 ECR Cash Drawer – Black, 24V
$89.51
Documentation supports this pairing — verification required
Check compatibilitySAM4S ER-925E Raised-Key Single-Printer Cash Register With Ethernet
Regular price
$849.00 USD

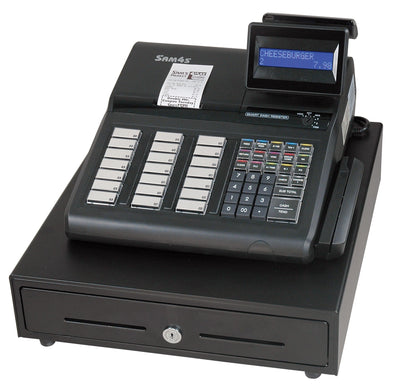

SAM4S ER-925E Raised-Key Single-Printer Cash Register With Ethernet
About the ER-925E
What it is and who it fits
The ER-925E is the ER-900E Series raised-key, single-printer model. Its 21 keyboard PLU keys work like traditional departments or preset-price keys, and a SAM4s dealer can expand the keyboard to 63 PLU keys. The journal is kept electronically.
A closer look
Detail photos supplied by CRS, the authorized SAM4S distributor.
Best fit
- Retail: gift shops, convenience stores, beer, wine and liquor, specialty food, produce, meat and main-street merchants (CRS application list)
- Counters that ring by department or preset-price key with large, easy-to-read keys
- Simple scanning: build the PLU file on the fly with not-found PLU registration
- Receipt-only printing, with the journal archived electronically, on SD card or by PC
Consider a different model when
- ER-945E if you need a printed journal as well as the receipt (same keyboard, two printers).
- ER-920E if staff ring a large menu from preset item keys, as in food service.
- ER-915E if you want receipt and journal printers with a smaller keyboard.
These are workflow differences, not quality rankings.
Key features
- One receipt printer, electronic journal. A 22-line-per-second thermal printer; the journal (up to 50,000 lines) can be printed at end of day, saved to SD card or polled by a PC.
- Operator and customer displays. A blue backlit two-line, 16-character LCD for the operator and a rear 9-digit LED display for the customer.
- SD card port. Save and load the program, capture reports, update firmware and upload receipt graphics.
- Card payments. One Ethernet port for semi-integrated DC Direct payments; EMV needs a compatible PIN pad and a persistent internet connection.
- Everyday capacity. Up to 500 guest checks, 2 price levels per PLU, 4 tax rates or tables and sales-by-day reports for 31 days.
- Languages. English, Spanish or French.
Configuration
What this machine is.
- Model number
- ER-925E
- Series
- ER-900 Series
- Keyboard
- Raised-key
- Built-in printing
- Single station (receipt)
- Printer technology
- Thermal
- Paper width
- 58 mm (2.25 in)
- Drive voltage
- 24V
- Electronic journal
- Supported
- Lifecycle
- Current
- Verified interfaces
- 2 × RS-232 serial (standard)2 × RS-232 serial (optional expansion)Ethernet for supported integrated-payment workflows (DC Direct)
Electronic journal. This register can keep journal records electronically inside the machine rather than only on paper. That is an electronic recordkeeping capability, not an extra print station: it does not add a second built-in printer, and it is not an external kitchen or remote impact printer.
About the ER-900 Series
Multi-use commercial cash registers with raised-key or flat keyboards and single- or dual-station printer configurations.
Typical use: Retail, liquor, convenience, grocery, restaurants, bars, bakeries, concessions, and other general checkout environments.
Specifications
Printing
| Print technology | Direct thermal, drop-and-print |
|---|---|
| Print stations | Single station (receipt) |
| Printer mechanism | 1 x Seiko LTPD245 |
| Print speed | 22 lines per second |
| Receipt paper width | 58 mm (2-1/4 in) |
| Electronic journal | Up to 50,000 linesAdvertised |
Keyboard
| Keyboard style | Raised-key |
|---|---|
| Keys | 52 |
| Keys with keyboard expansion kit | Up to 94 keys / 78 programmable locationsOptional |
| Keyboard PLU (NLU) keys | 21, expandable to 63 |
Capacity
| PLU capacity | Up to 22,000Advertised |
|---|---|
| Clerks / cashiers | Up to 99Advertised |
| Group totals | Up to 99Advertised |
| Tax rates / tables | 4 |
| Guest checks | Up to 500 hard or softAdvertised |
| Price levels per PLU | Up to 2Advertised |
Connectivity
| Serial ports | 2 x RS-232C (COM1 & COM2, D-Sub-9M) |
|---|---|
| Additional serial ports | 2 x RS-232C (COM3 & COM4, RJ45) via 2-port serial board, CRS item 501531Optional |
| Ethernet | One port, for DC Direct integrated payment |
| Cash drawer port | One RJ11 (24V), supports open/close |
| SD card port | Standard (program save/load, report capture, firmware updates, graphics upload) |
| Card reader | Integrated dual-track MCR, CRS item 501530Optional |
Power
| Power requirements | 120 V AC +/-10%, 50/60 Hz |
|---|---|
| Power consumption | Approx. 25 W |
| Memory protection | Full charge for 24 hours protects memory for 90 days |
| Cash drawer drive | 24V |
Physical

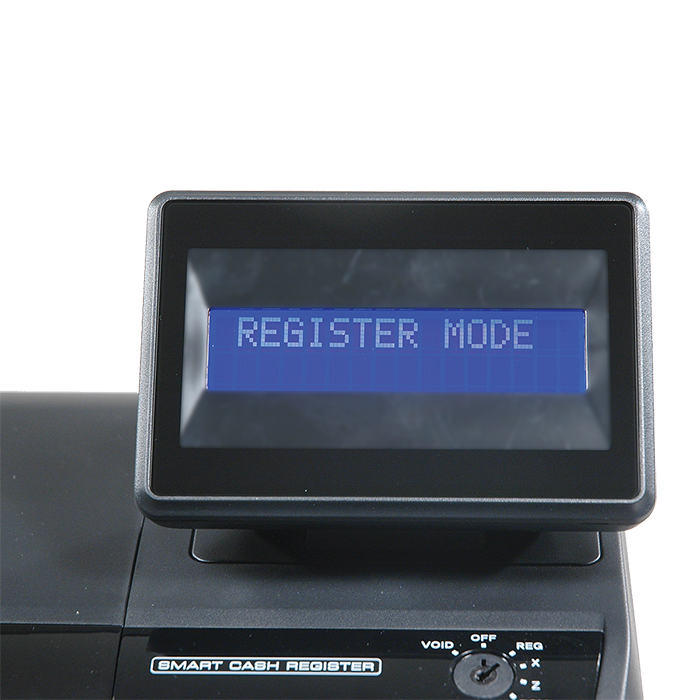

| Operator display | 2 lines x 16 characters, blue backlit LCD |
|---|---|

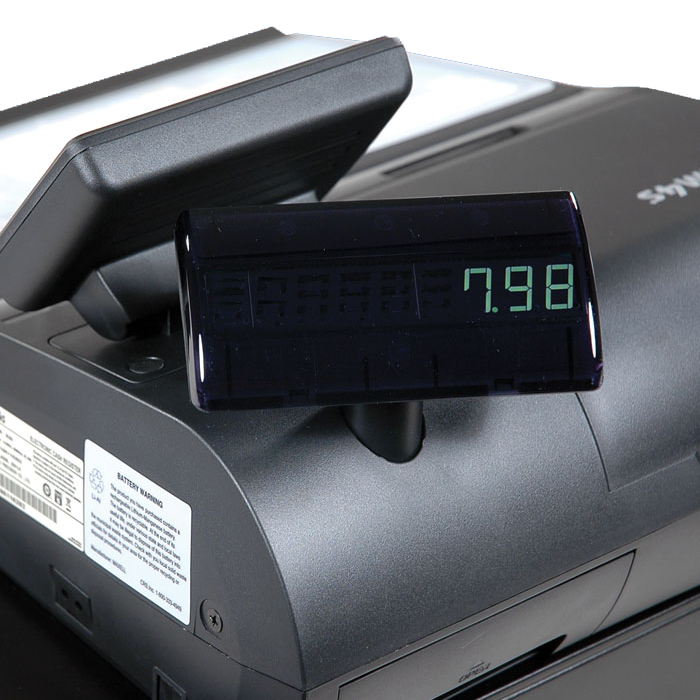

| Customer display | 9-digit LED, rear |
| Standard cash drawer | Model 60: 5 bill / 5 coin, drawer lock, two media slots |
| Unit dimensions / weight | 16-1/2 x 15-3/4 x 11-13/16 in (W x D x H), 25.10 lb |
| Shipping carton | 22 x 20 x 15 in, 30 lb |
| Operating environment | 32-104 F (0-40 C), 30-80% RH non-condensing |
Specified in: ER-900E Series Product Update SheetER-900E Series Brochure
Complete Your Register Setup
Everything this register comes with, and the few things worth adding. Options are off unless you turn them on.
Already purchased this register?
Start the setup for SAM4S ER-925E Raised-Key Single-Printer Cash Register With Ethernet.
Send us the business, programming, peripheral, payment-terminal and go-live details we need to prepare the register correctly. The worksheet will already know the exact model.
Accessories, supplies and support
These are the items we associate with this register in our own data. Add what you need now, or keep the register by itself.
Hardware compatibility
Documentation supports this pairingVerification required
Documented in:ER-900E Series Product Update SheetER-900 Series HelpER-900E Series Operator-Programming Manual
Verification is still required for the exact interface, connector or cable, available power, firmware and programming before this hardware should be ordered for the register.A connector that physically fits does not by itself establish compatibility. Interface, cable, protocol, firmware and programming can all matter, so anything not marked as established should be confirmed with us before you order. Ask us to confirm a pairing.
Code CR950 1D/2D Barcode Scanner – Serial with Power Supply
$175.00
Documentation supports this pairing — verification required
Check compatibility
Code CR5215 Barcode Scanner – Serial with Power Supply
$395.00
Documentation supports this pairing — verification required
Check compatibilityProgramming & support
Support and programming are sold as time blocks at $100 per hour, or $50 for a 30-minute block, Monday–Friday, 9:00 AM–5:00 PM Eastern. There is no 24/7 line. You do not need to have bought the register from us.
Supplies
This model uses 58 mm (2.25 in) receipt paper. Check the roll diameter your printer accepts as well as the width, since width alone does not guarantee fit.
Taking card payments too? Processing is a separate decision from the register, and you can buy any register, package, support or programming here without changing processors. If you want a second opinion on your current statement, equipment and pricing, we can review it.
Request a statement review
Verified accessories
Accessories documented for this register
These are exact products, matched to this exact register. Anything not listed here is not ruled out — it simply has not been verified yet, and we would rather tell you that than sell you a guess.
Model 60
SAM4S Model 60 ECR Cash Drawer – Black, 24V
RJ11
CRS, the authorized distributor, lists this 24V drawer as the standard cash drawer for the ER-925E, so the pairing itself is documented.
$89.51
View & buy
GCUBE
SAM4s GCUBE Thermal Receipt Printer – Black, USB, Serial & Ethernet
USB / Serial / Ethernet
Register compatibility verification required
$193.75
View & buy
GCUBE
SAM4s GCUBE Thermal Receipt Printer – White, USB, Serial & Ethernet
USB / Serial / Ethernet
Register compatibility verification required
$189.95
View & buy
BTP-M300A
SNBC BTP-M300A Impact Receipt Printer – USB & Serial, with Cutter
USB / Serial
Register compatibility verification required
$261.25
View & buyBTP-M300A
SNBC BTP-M300A Impact Receipt Printer – USB & Serial, No Cutter
USB / Serial
Register compatibility verification required
$256.25
View & buy
TS100
Unitech TS100 1D/2D Barcode Scanner – USB or Serial/RS232 for Cash Registers
USB
Owner confirmed for raised-keyboard SAM4s registers. The serial configuration, with the cable and power needed to run it included.
$173.75
View & buy
CR950
Code CR950 1D/2D Barcode Scanner – Serial with Power Supply
RS232
SAM4s setup procedure documented
$175.00
View & buy
CR5215
Code CR5215 Barcode Scanner – Serial with Power Supply
RS232
SAM4s setup procedure documented
$395.00
View & buyDocumented does not mean plug-and-play: port programming, baud settings and the correct cable still have to be right, and that is what we confirm with you before anything ships.
Before you add accessories
Compatibility depends on the exact register model, interface, cable, firmware and programming. We verify the correct configuration before recommending an accessory.
Have us check it →
Compatibility
What we have verified so far.
Cash Drawers
Barcode Scanners
Documented in:ER-900E Series Product Update SheetER-900 Series HelpER-900E Series Operator-Programming Manual
What still has to be confirmed for your counter:
- The manufacturer documents this at the series family level, not as a guaranteed match for one exact configuration.
- The exact port and connector on your equipment has to be confirmed.
- The exact cable has to be confirmed.
- Port programming and device settings have to be confirmed.
- The intended workflow has to be confirmed before anything is ordered.
Compatibility status: Verification required. We confirm the exact configuration before recommending or shipping equipment.
Tax, departments, items, prices, clerks, keyboard layout and receipt details are set up with your register. Custom work beyond the standard setup is quoted separately.
See programming scope →Technical support is a separate service from programming. Support hours are Monday–Friday, 9:00 AM–5:00 PM Eastern; we do not offer 24/7 support. The current support rate is $100/hour.
Support & service hub →Replacement & upgrade
Coming from an older register?
ER-925→ER-925E
For businesses replacing an ER-925, the ER-925E is the closest current SAM4S option based on the documented feature comparison: the same raised-key keyboard, single-station printer and electronic journal, in the current ER-900E generation. This is a documented feature comparison, not a manufacturer replacement statement.
Confirm the existing ER-925 programming, keyboard layout, peripherals, payment equipment, reports and any data-transfer expectations before ordering. Do not assume existing programming or peripherals transfer directly without verification.ER-380 / ER-390→ER-390M → ER-920E (closest fit) · ER-380 / ER-380M: options to discuss
The ER-390M's documented flat 90-position keyboard, single thermal printer, electronic journal and two RS-232 ports compare most closely with the current ER-920E. The ER-380 and ER-380M keyboard type is not documented, so the ER-925E and ER-915E are options to discuss once we see the keyboard.
Confirm the exact old model, keyboard style, programming, scanners, scales, printers, cash drawer, payment equipment, reports and data-transfer expectations before ordering. Do not assume existing programming or peripherals transfer directly.Older ER-900 Series→ER-920 → ER-920E · ER-925 → ER-925E · ER-940 → ER-940E · ER-945 → ER-945E
Each current ER-900E model keeps the keyboard and printer configuration of its older counterpart (flat or raised keys; single-station or receipt-and-journal printing), as documented in the CRS ER-900 Series brochure and the ER-900E update sheet. This is the closest current fit based on documented features, not a manufacturer replacement statement. If the workflow has changed, the NR-510 or SAP-630II are options to discuss.
Confirm the exact old model, keyboard style, programming, scanners, scales, printers, cash drawer, payment equipment, reports and data-transfer expectations before ordering. Do not assume existing programming or peripherals transfer directly.
Replacement guidance is advisory, not a confirmed one-to-one mapping.
Before ordering a replacement we confirm:
Exact old modelKeyboard styleProgrammingScannersScalesPrintersCash drawerPayment equipmentReportingData-transfer expectations
Existing programming and peripherals do not automatically transfer to a new register. Send us the exact old model and we will check it against your workflow before anything is ordered.
Documentation
Manuals and guides for this model.
Related models
Compare the ER-900 models
Same family, different keyboards and printers. Prices are current.
-

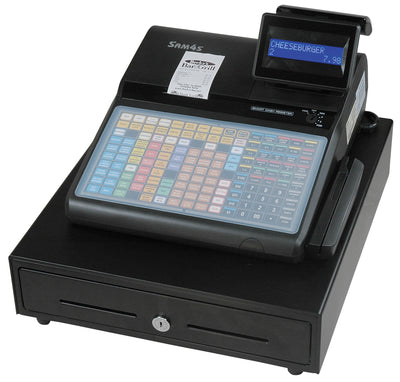

ER-920E
- Keyboard
- Flat · 150 keys / 100 programmable
- Printing
- Single station (receipt)
- Items
- Up to 22,000 PLUs
- Best for
- Food service and menu-driven checkout.
$815.00
View ER-920E -

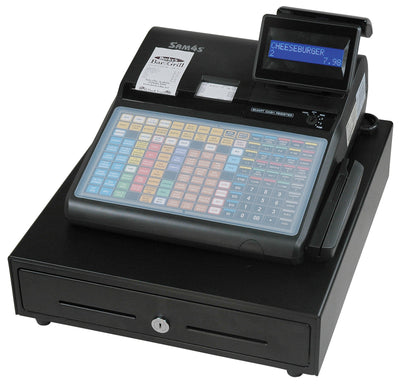

ER-940E
- Keyboard
- Flat · 150 keys / 100 programmable
- Printing
- Dual station (receipt + journal)
- Items
- Up to 22,000 PLUs
- Best for
- Food service and menu-driven checkout.
$879.00
View ER-940E -
ER-925E This model
- Keyboard
- Raised-key · 52 keys (94 with expansion kit)
- Printing
- Single station (receipt)
- Items
- Up to 22,000 PLUs
- Best for
- Retail and item-driven checkout.
$849.00
-

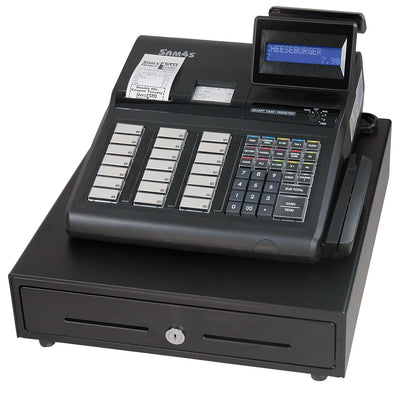

ER-945E
- Keyboard
- Raised-key · 52 keys (94 with expansion kit)
- Printing
- Dual station (receipt + journal)
- Items
- Up to 22,000 PLUs
- Best for
- Retail and item-driven checkout.
$899.00
View ER-945E -

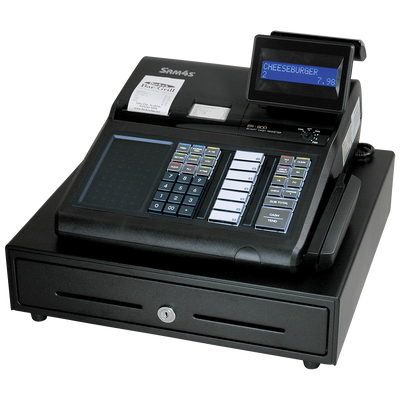

ER-915E
- Keyboard
- Raised-key · Up to 41 keys
- Printing
- Dual station (receipt + journal)
- Items
- Up to 22,000 PLUs
- Best for
- Retail and item-driven checkout.
$849.00
View ER-915E
The ER-915E is documented by CRS separately from the ER-900E Series; its figures come from its own brochure.
Buy the right setup the first time
Make sure this equipment fits the way your business actually checks out customers.
Confirm the workflow, capacity and connected equipment that matter at your counter before ordering.
How sales are entered
Departments, preset/open prices, PLUs, barcodes and employee workflow.
Capacity & reporting
Enough item, department and reporting capacity for today and reasonable growth.
Connected equipment
Verify scanners, printers, drawers, scales and interfaces by exact model.
Programming & replacement
Document the old model, keyboard, reports and programming before replacing it.
Want it set up around your business?
Use a programmed package to match the register, accessories and initial setup to your workflow.
Replacing an existing register?
Start with the exact old model and the functions the business needs to keep.
Still comparing registers?
See every current SAM4S register side by side and narrow it by business type, keyboard, barcode scanning and card processing.
Need payment processing with this register?
We can review your current processing statement and help match the payment setup to the register. If your existing processor already works well, you can keep it.
Processor change is not required. Buy or replace the register first; review processing only if it is useful to the business. For multiple registers or a larger rollout, request volume pricing based on the actual project.
