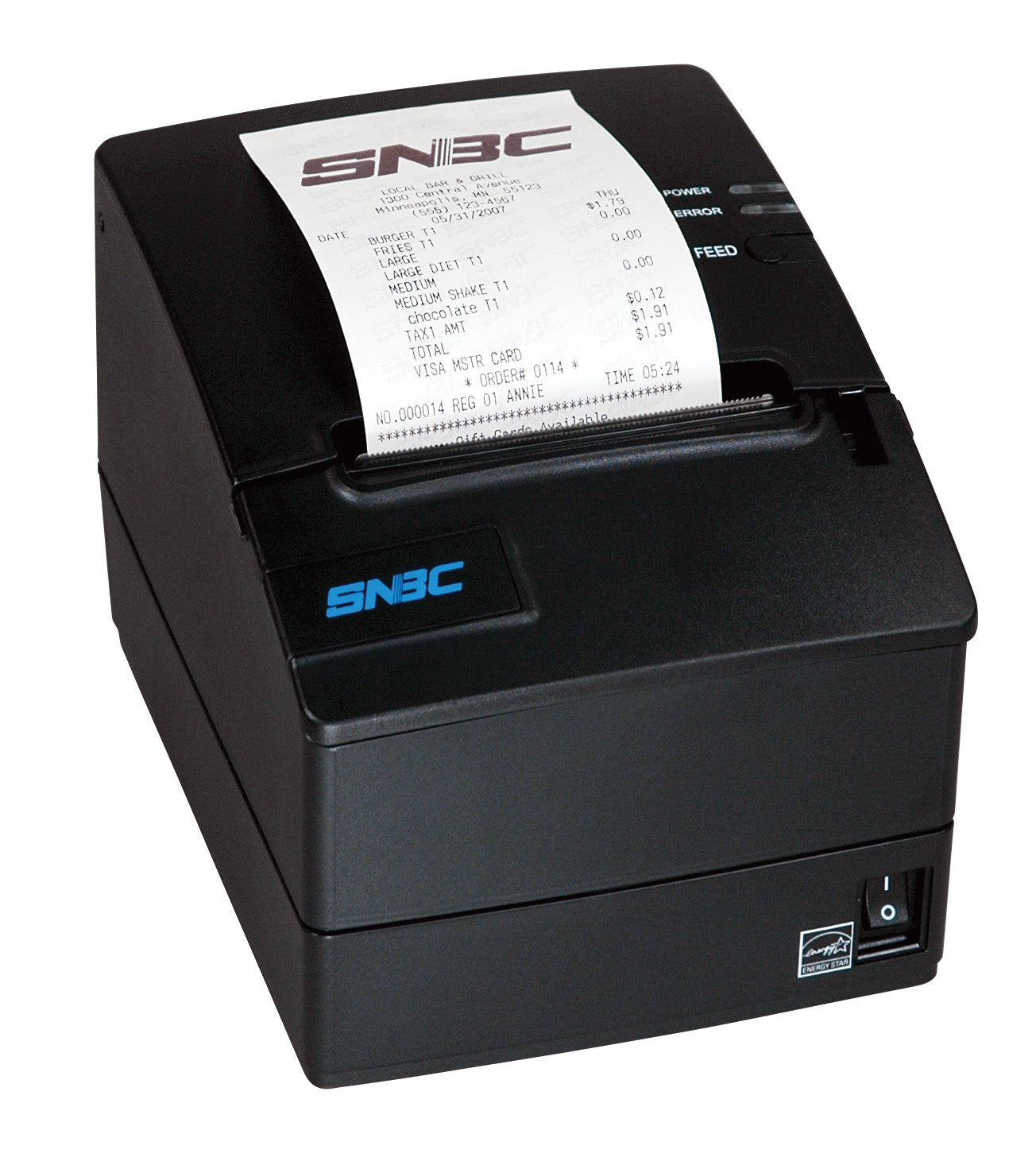

SNBC BTP-R180II Thermal Receipt Printer – USB, Serial & Ethernet
Regular price
$143.75 USD
Description
SNBC BTP-R180II Thermal Receipt Printer – USB, Serial & Ethernet
Complete Your Register Setup
Everything this register comes with, and the few things worth adding. Options are off unless you turn them on.
Complete Your Setup
These are the items we associate with this product in our own data. Add what you need now, or keep this item by itself.
Supplies
This model uses 57 / 69.5 / 76 / 80 / 82.5 mm receipt paper. Check the roll diameter your printer accepts as well as the width, since width alone does not guarantee fit.
Specifications
What this product is.
- Model number
- BTP-R180II
- Printer technology
- Thermal
- Paper width
- 57 / 69.5 / 76 / 80 / 82.5 mm
- Verified interfaces
- USBSerialEthernet
Confirm this fits your counter
Compatibility depends on the exact host equipment, interface, cable, firmware and programming. We verify the correct configuration before recommending or shipping it.
Have us check it →
Manuals & Downloads
Manuals and guides for this product.
Each PDF is matched to this exact model. Files open in a new tab or save to your device, depending on your browser.
SNBC BTP-R180II Support and Downloads
Open Manufacturer Support Page →
Works with
What can be added to this register
These are the connections and peripheral types the manufacturer documents for this model.
Documented connections
- USB
- Serial
- Ethernet
Read this before you buy an accessory
This tells you what kind of device the register supports. It does not tell you that a particular scanner, printer, scale or display will work with it — that depends on the exact model, cable, port programming and firmware, and still has to be confirmed. The accessories we have actually verified for this register are listed below.
Documented in: SNBC BTP-R180II Support and Downloads
Check compatibilityComplete your system
Take card payments through the same system
Integrated payments mean the card terminal and the register talk to each other, so the sale is entered once and the totals agree at the end of the day.
Enter the sale once
No keying the total into a separate terminal, and no reconciling two sets of numbers because someone typed it twice.
One setup, one support call
The register, the peripherals and the payment side are set up together, so when something needs attention there is one number to ring.
Checked against each other first
We verify the register, the processing program and the integration path as one combination before recommending it, rather than assuming parts fit.
A processor change is not required to buy equipment. If you are already taking cards, send us a recent statement and we will tell you plainly whether a change is worth making.
Current product
Current
Vendor:
SNBC
SNBC BTP-R180II Thermal Receipt Printer – USB, Serial & Ethernet
Regular price
$143.75 USD
Options
Descriptions
SNBC BTP-R180II thermal receipt printer — USB, serial and Ethernet, CRS SKU 132085. This is a fast direct-thermal POS printer for retail, restaurant and checkout systems that need multiple interface options in one unit.
Key BTP-R180II specifications
- Print method: direct thermal
- Resolution: 180 × 180 dpi
- Print speed: up to 230 mm/sec on the CRS-listed configuration
- Interfaces: USB, RS-232 serial and Ethernet
- Paper widths: supports common 57.5, 69.5, 76, 80 and 82.5 mm rolls
- Maximum print width: 72 mm
- Auto cutter: selectable full or partial cut
- Cash drawer: drawer-control port
- Emulation: ESC/POS compatible
What is included?
CRS lists the BTP-R180II triple-interface configuration with serial and USB cables plus the power supply. Verify the exact contents on the order if your installation depends on a specific cable.
Drivers and setup
The BTP-R180II supports Windows/Linux POS environments and common POS driver layers such as OPOS/JavaPOS on supported configurations. If the printer is not detected, first verify which interface you are actually using, then check the Windows COM port/IP settings and the correct SNBC driver rather than changing the printer configuration at random.
Will it work with my SAM4S register or POS?
The connector alone does not prove compatibility. The host system must support the printer's interface and command set, and cash-drawer routing may also depend on the POS or printer configuration. Send us the exact register/POS model if you want the pairing verified before ordering.
